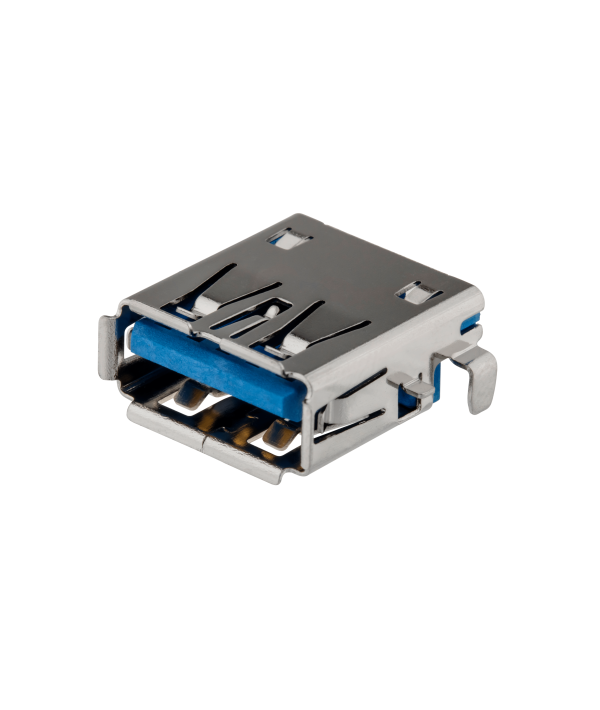

LUB-3006D
INFO
- - Product Code: LUB-3006D
- - Availability: Pre-Order
| Model Name: | LUB-3006D |
| Product Description: | USB 3.2 Gen1 A Type Connector |
| Orientation: | Offset Type |
| Mounting Type: | Surface Mount |
| Insertion Depth: | 9.30mm |
| Distance Between Bottom to Center: |
0.64mm |
| Electrical Rating: | 1)PIN 1,4: 1.8A maximum. 2)0.25A for all other contacts. |
| Product Life Cycle: | 1500 |
| Product Length: | 14.25mm |
| Product Width: | 14.30mm |
| Product Height: | 6.92mm |
| 2D Drawing: | Datasheet |
$0.00
