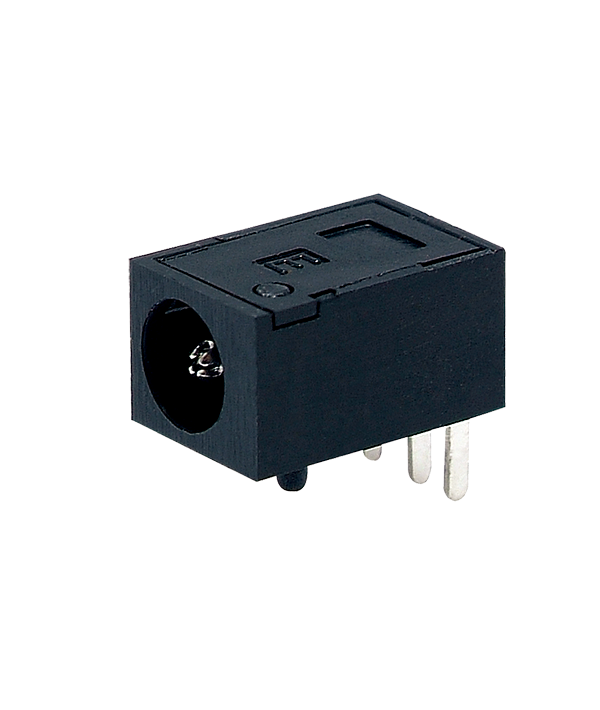

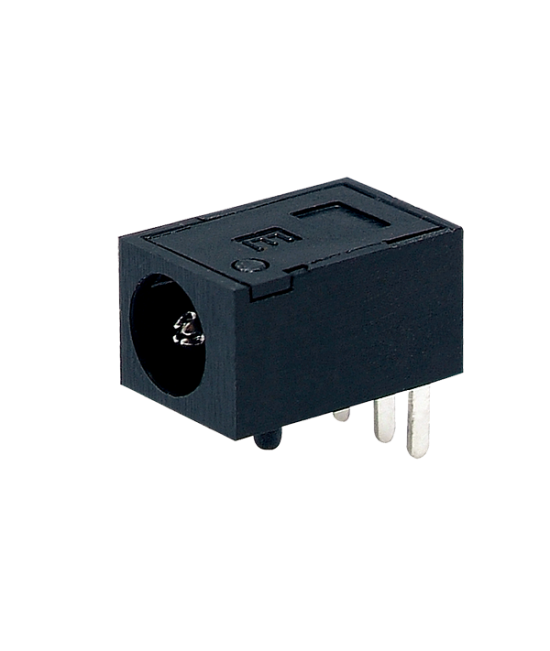

LDC-015H
INFO
- - Product Code: LDC-015H
- - Availability: Pre-Order
| Model Name: | LDC-015H |
| Product Description: | High Current DC Power Socket |
| Orientation: | Horizontal |
| Mounting Type: | Through Hole |
| Insertion Depth: | 6.55mm |
| Distance
Between Bottom to Center: |
2.50mm |
| Electrical Rating: | 3.5A/24V DC Max. |
| Product Life Cycle: | 5000 |
| Product Length: | 9.00mm |
| Product Width: | 6.00mm |
| Product Height: | 5.00mm |
| 2D Drawing: | Datasheet |
$0.00
